YOURx Flex Box - Fiber Access Box
Carriers are faced with many challenges when cabling MDUs in both existing (brownfield) and new construction (greenfield). One such challenge is how to manage incoming duct, while supporting varying number of subscribers in different configurations with slack management while also reducing installation time. Clearfield’s patent-pending YOURx Flex Box addresses these challenges with a flexible and scalable solution all within a single wall box.
Product Details
The YOURx Flex Box is a secure, modular wall box with slide-in aggregator plate that supports multiple entries for individual fiber cables, conduit and microduct in an organized manner. Installers simply push the microduct into the aggregator plate and they are ready to pull fiber. Slack storage is provided for both incoming and outgoing fiber in separate areas to reduce service interruptions when turning up additional subscribers. The drop wheel feature accommodates up to 16 individual drop wheel assemblies with each drop wheel supporting up to a 200’ (60.96 m)of FieldShield® StrongFiber storage. The SmartRoute Plate can also be mounted in the Flex Box, providing spool technology and MPO connectorization. Using the Clearview® Cassette, Drop Wheel assembly or SmartRoute Plate allows for a plug-and-play concept which reduces installation time.
Introducing the FieldShield Drop Wheel: The flexible and modular Drop Wheel allows the service providers to simplify their fiber distribution and slack management by providing a plug-and-play solution that covers 0-200 ft. of distance on a single wheel. Designed to support up to 16 wheels in the YOURx Flex Box.
The SmartRoute Plate mounted in the Flex Box, provide spool technology and MPO connectorization.

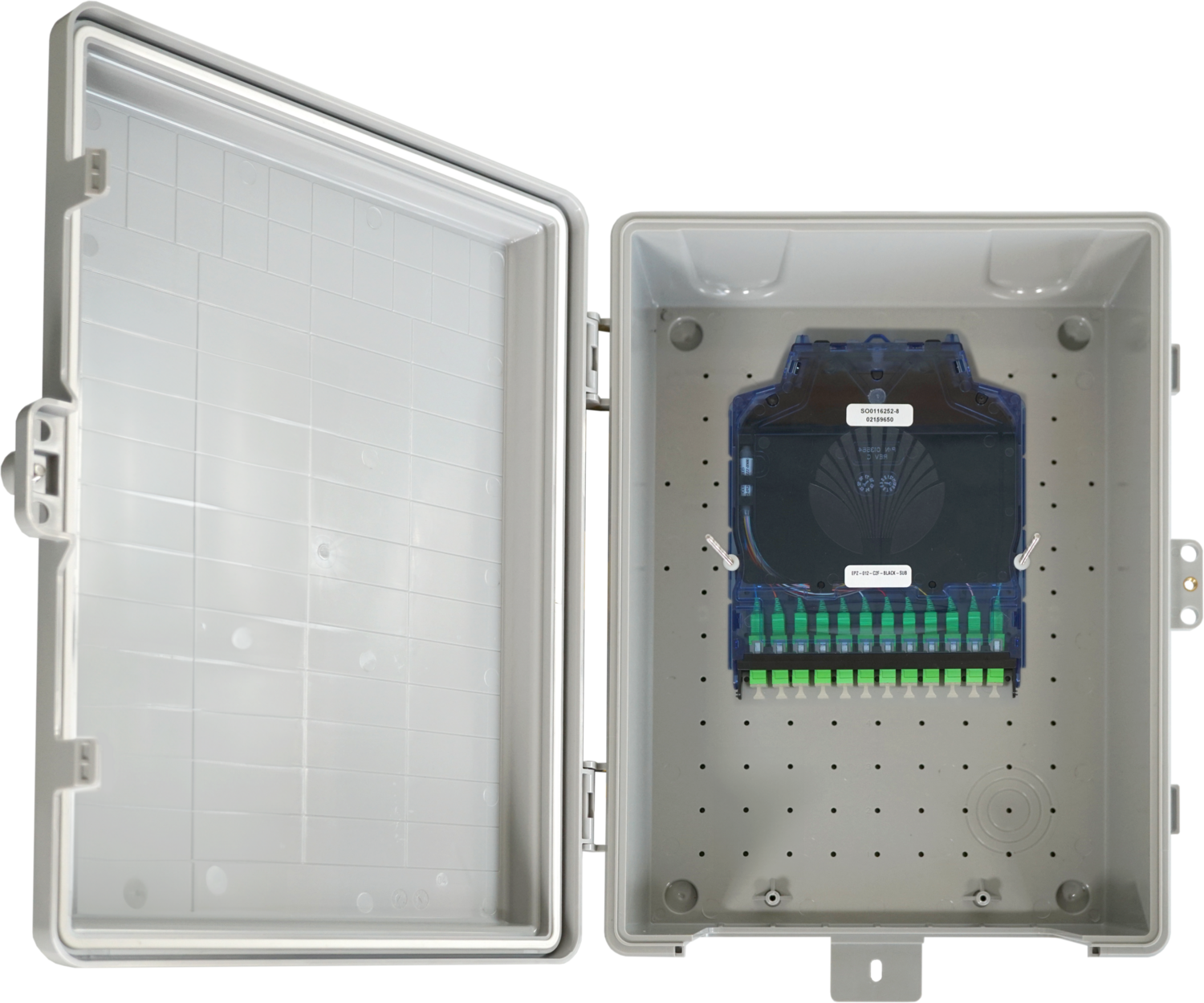

Clearview Cassette - the scalable building block platform for all FieldSmart products - is another option supported by the Flex Box for the interconnection of fiber.
Features & Benefits
Integrity- Utilizes the Clearview Blue Cassette, Clearview xPAK and FieldShield Drop Wheel
- 1” inside mounting hole pattern for multiple applications
- Dual snap ensures lid secures to box
- Security screw with ability to secure with padlock
- Gasket seal
- Grounding lug included
- Internal mounting holes for easy installation
- Top and bottom entry/exit points
- Reversible door allows for dual direction mounting
- Scalable
- Slide-in aggregator plates eliminate the need for additional duct organizer
- Clearview Cassette, Clearview xPAK, Drop Wheel or SmartRoute Plate
Technical Specifications
YOURx Flex Box |
|
---|---|
Dimensions | 15.66" H x 12.00" W x 5.38" D (397.76 mm x 304.80 mm x 136.65 mm) |
Material | UV rated, flame retardant, V0 rated |
Port Density | Four cassettes (48 ports), up to 16 in drop wheel, SmartRoute Plate 24 port |
Connectivity Types | Clearview® Blue, Drop Wheel, SmartRoute Plate |
Aggregator Plate |
Duct Plate supports (24) 10/6 mm and (2) 14/10 mm Microduct Combo Plate supports (24) 10/6 mm Microduct PON Plate supports (32) 10/6 mm microduct. Blank Plate supports 2 conduit. |
Drop Wheel | Fiber type - FieldShield StrongFiber |
Drop Wheel Connector | Drop Wheel Connector Pullable SC/APC and SC/UPC to standard SC/APC and SC/UPC |
Drop Wheel Cable Length | 200 feet (60.96 m) FieldShield StrongFiber |
Drop Wheel Material | Black Thermoplastic |
