StreetSmart Fiber Hand-Off Box

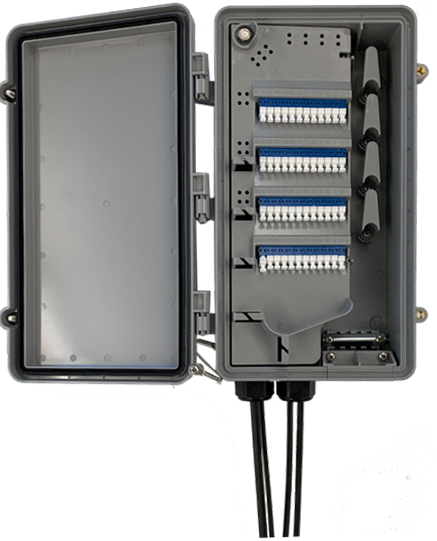

The StreetSmart™ Fiber Hand-Off Box serves as the demarcation point between the backhaul provider and the mobile network operator. Designed with a hinged plate and 216 locking mechanism, a secure separation is created between the wireless and wireline provider. The Fiber Hand-Off Box provides a single test access point to an angled adapter plate, designed to offer ease of cleaning and maintenance.

Ask a Question

How Can We Help?

Product Details

The StreetSmart Fiber Hand-Off Box comes in plug-and-play and patch only configurations. The plug-and-play configuration utilizes an MPO adapter for easy installation.  The patch only configuration delivers a factory-installed cable offered in different cable constructions and different lengths. With factory-installed cable management rods, removable door and no special tool requirement, the StreetSmart Fiber Hand-Off Box is extremely craft-friendly.

The Fiber Hand-Off Box supports up to two incoming cables and eight distribution cables using a split grommet design. Each distribution port is labeled for easy circuit identification.

Features & Benefits

  • Designed, tested and certified to Telcordia GR-771
  • Terminations designed, tested and certified to Telcordia GR-326
  • MPO terminations designed, tested and certified to Telcordia GR-1435
  • Sealcon fitting with multiple media grommets
  • Gasket cover for protection from the elements
  • 216 locking feature (can wrench)
  • Secure plate between backhaul provider and mobile operator
  • Removable tethered hinged door
  • Pole, wall and aerial mounting
  • Angled adapters for ease of cleaning
  • Multiple cable management guides
  • Two cable entry ports

Technical Specifications

Dimensions 13” H x 8.0” W x 3.0” D
Box Options Pre-terminated Cable or MPO Assemblies
Connector Types LC/APC, LC/UPC, SC/APC, SC/UPC or MPO
Cable Entrance Two Entry Ports
Cable Exits Eight Flat Drop With Lay-In Design
Labeling Designation Label
Mounting Options Pole, Wall and Aerial
