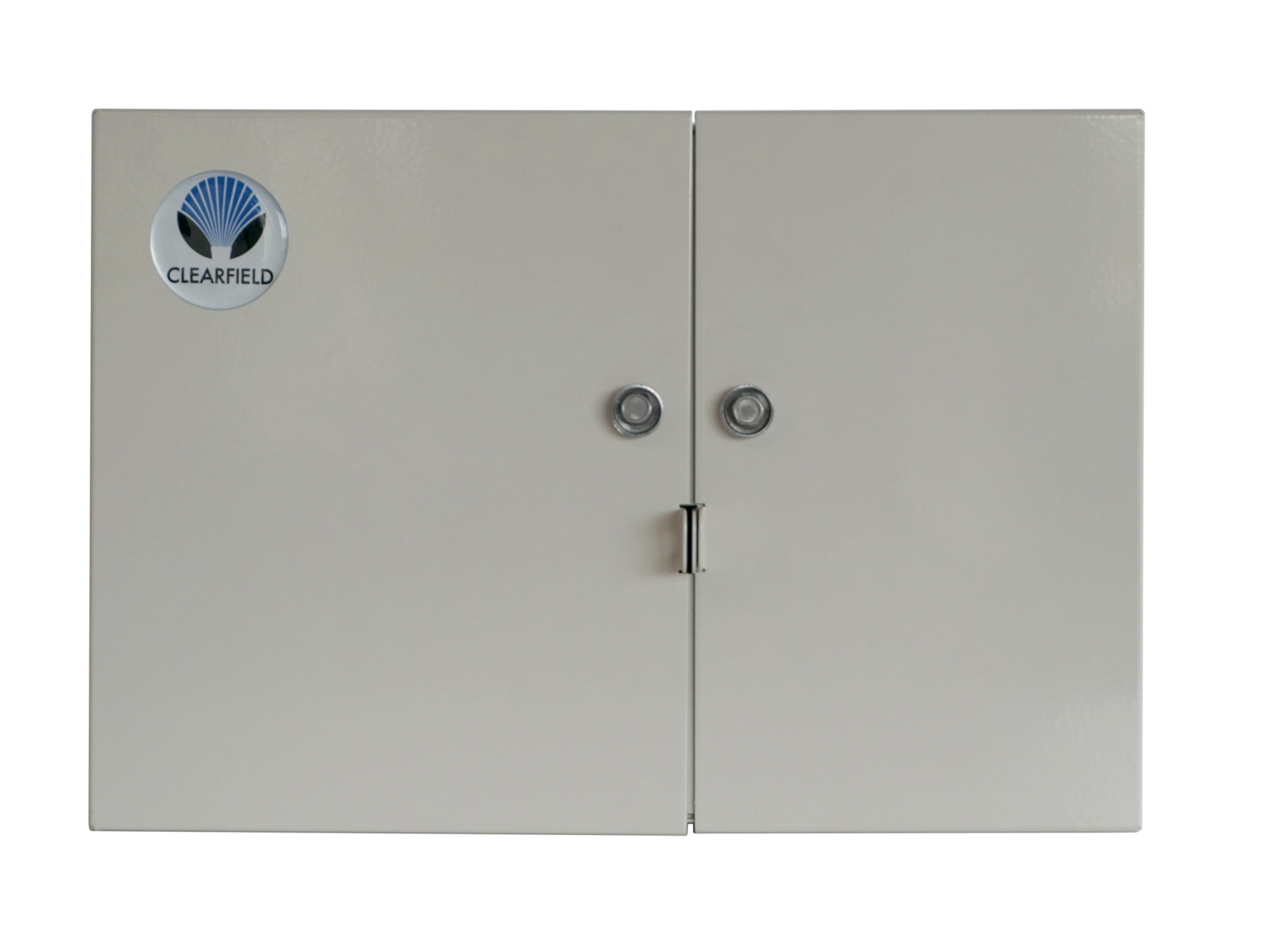

FieldSmart Fiber Delivery Point (FDP) Indoor Metal Fiber Wall Box - 36, 96 and 144 Port

The FieldSmart Fiber Delivery Point (FDP) Indoor Wall Box has been optimized for MDU applications. Configurable with up to 144 distributed ports and 24 feeder ports, users can easily scale their networks using the same consistent Clearview® Cassette deployment strategy. With the ability to house up to three 1 x 32 splitters, the Indoor Wall Box supports PON applications, as well as fiber demarcations, entrance facilities and security systems (CCTV).

Ask a Question

How Can We Help?

Product Details

The FieldSmart Fiber Delivery Point (FDP) Indoor Wall Box is Clearview optimized, allowing the user to easily scale from 12 to 144 distributed ports and 24 feeder ports. Utilizing Clearview Cassettes, the product is shipped and loaded with the industry standard adapters. It is preloaded for patch only, patch and splice (Clearfield’s in-cassette splicing solution) and MPO plug-and-play applications and supports all cable constructions for the inside or outside plant. It is ring-cut or mid-span capable, allowing for the distribution cables to be daisy-chained and for fiber hand-off through the riser. The box has a swinging bulkhead for rear-access to the cassettes, security enabled doors for extra protection and a solid enclosure to protect fiber terminations from damage. Designed from conception to provide fast, easy fiber jumper routing and ease of access to all circuits, the wall box system is craft-friendly, keeping the installer’s needs for quick deployment, intuitive use and ease of maintenance as the top priority.

Features & Benefits


  • Terminations designed, tested and certified to Telcordia GR-326
  • Clearfield® FiberDeep® Guarantee: 0.2 dB insertion loss or less, exceeding industry standards
  • Fiber cable certified to Telcordia GR-20 and GR-409
  • Supports all industry standard singlemode and multimode connectors
  • 100% performance tested for insertion loss, return loss and final mechanical inspect


  • Radius protected storage for up to five meters of jacketed fiber or patch cord slack is provided (patch side)
  • Rugged steel construction with security enabled doors provide protection from tampering or inadvertent damage with industry standard can wrench fasteners
  • Integrated fiber management protects fiber from micro-bend and macro-bend damage
  • A grounding lug is included
  • Secondary locking fasteners for optional padlock


  • Removable doors and non-angled connectors enable easy fiber jumper routing, reducing the risk of fiber damage
  • Upper and lower entry/exit points for feeder/customer premise cables
  • Larger design facilitates ease of access in the environments product is deployed and is accessible using a standard can wrench
  • Pre-loaded for patch and splice or patch only applications


  • Scalable to 144 distributed ports and 24 feeder ports of fiber using Clearview Cassettes loaded with the interface of your choice: user-defined feeder/distribution port counts
  • Pre-configured/pre-loaded factory terminated assemblies
  • Box can be configured as a tie box and later converted to patch only or patch and splice, utilizing the Clearview Cassette

Technical Specifications

Specification FieldSmart Indoor 36 Port Wall Mount Panel FieldSmart Indoor 96 Port Wall Mount Panel FieldSmart Indoor 144 Port Wall Mount Panel
Dimensions 10.34” H x 15.31” W x 5.25” D (262.63 mm x 388.87 mm x 133.35 mm) 14.97” H x 27.31” W x 10.78” D (380.24 mm x 693.67 mm x 273.81 mm) 23.59” H x 24.56” W x 8.35” D (599.19 mm x 623.82 mm x 212.09 mm)
Port Density Up to 36 ports Up to 96 ports Up to 144 distributed ports and 24 feeder ports
Cassette Types Supported Clearview® Blue
Connector Types SC/UPC, SC/APC, LC/UPC, LC/APC, MPO
Cable Types Indoor Riser, Indoor Plenum, Indoor/Outdoor
Splice Capacity 12 or 24 splice configurations in each Clearview Cassette
Storage Capacity One meter of 900 μm fiber and up to 5 meters of jacketed fiber
Material 18 gauge cold rolled steel (almond powder coating)
