Supporting your BABA Compliant Needs.FieldSmart Fiber Delivery Point (FDP) Splice Only Pedestal

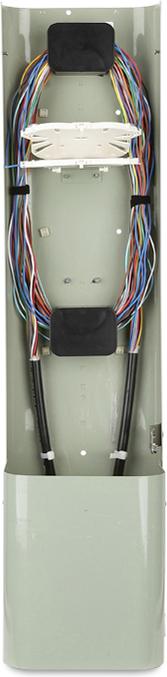

Front View of Splice Only Fiber Pedestal
Rendering of Splice Only Fiber Pedestal
Splice Only Pedestal by Pencell
The FieldSmart FDP Splice Only Pedestal provides splice or interconnect connectivity at the access point for the last mile drop.
Ask a Question
BABA Compliant Option Ready for Quote
This product meets BABA compliance standards and is available to quote. For more details, please contact our sales team at (800) 422-2537 or complete the inquiry form here.
Product Details
The FieldSmart FDP Splice Only Pedestal incorporates field-tested slack management and fiber splice trays to provide a craft-friendly splice only access solution. The splice only pedestal can be configured to support the specific drop cable, multi-fiber and ring cut requirements. The Clearfield® designed back plane makes it possible for the bulkheads to integrate into industry standard pedestals.
Features & Benefits
Integrity
- RUS listed
- Designed to comply to Telcordia GR-13
Protection
- Open architecture
- Strength, rigidity and security all in a high-performance thermo-plastic or metallic material designed to Telcordia GR-13 and RUS PE-91 specifications
- Single point self-locking cover provides secure pedestal locking and eased craft access
- Available in metallic and non-metallic pedestals
Access
- Removable front covers on metallic versions
- Can wrench fasteners
- Easy lift-off dome on thermo-plastic models - allows for 360° access permits complete access to all wire work and equipment
Investment
- Low cost entry with RUS listed fiber pedestal
- Utilizes cost effective
- Up to 16 splice trays with Clearfield regular drop cable assembly or industry standard HFOC
- Integrates distribution splices, splitters and slack cable for a cost-effective flexible option for any FTTP deployment
Technical Specifications
| FieldSmart Splice Only Ped | Metallic BD5 | Non-metallic ProFORM 12 | Non-metallic Pencell 10x10 |
|---|---|---|---|
| Dimensions | 43.25” H x 10.5” W x 10.5” D (1098.55 mm x 266.70 mm x 266.70 mm) | 45” H x 10.5” W x 14.5” D (1143.00 mm x 266.70 mm x 368.30 mm) | 31.4” H x 13” W x 13” D (797.56 mm x 330.20 mm x 330.20 mm) |
| Cover Height | 31.25” (793.75 mm) | 30” (762.00 mm) | 20” (508.00 mm) |
| Base Height (Buried) | 12” (304.80 mm) | 15” (381.00 mm) | 11.4” (289.56 mm) |
| Material | Galvanized steel | High performance thermo-plastic | HDPE/LDPE |
| Density | Up to 144 splices | ||
| Number of Splice Trays | Up to 16 | Up to 6 | |
| Splice Capacity | 24 splices in each splice tray | ||
| Splice Tray Dimensions | 10 mm H x 163 mm W x 126 mm D | ||
