The Mini FEC Wall Box can support both indoor and outdoor fiber optics deployments. Each Mini FEC comes equipped with industry standard splice trays, cable management clips, a ground lug and two ship-along cable clamps. Each splice tray can support 24 splices with a maximum capacity of four splice trays per wall box or 96 splices. Slack storage is available for up to 5’ per buffer tube and up to 5’ (1.52 m)per IFC micro-distribution cable.

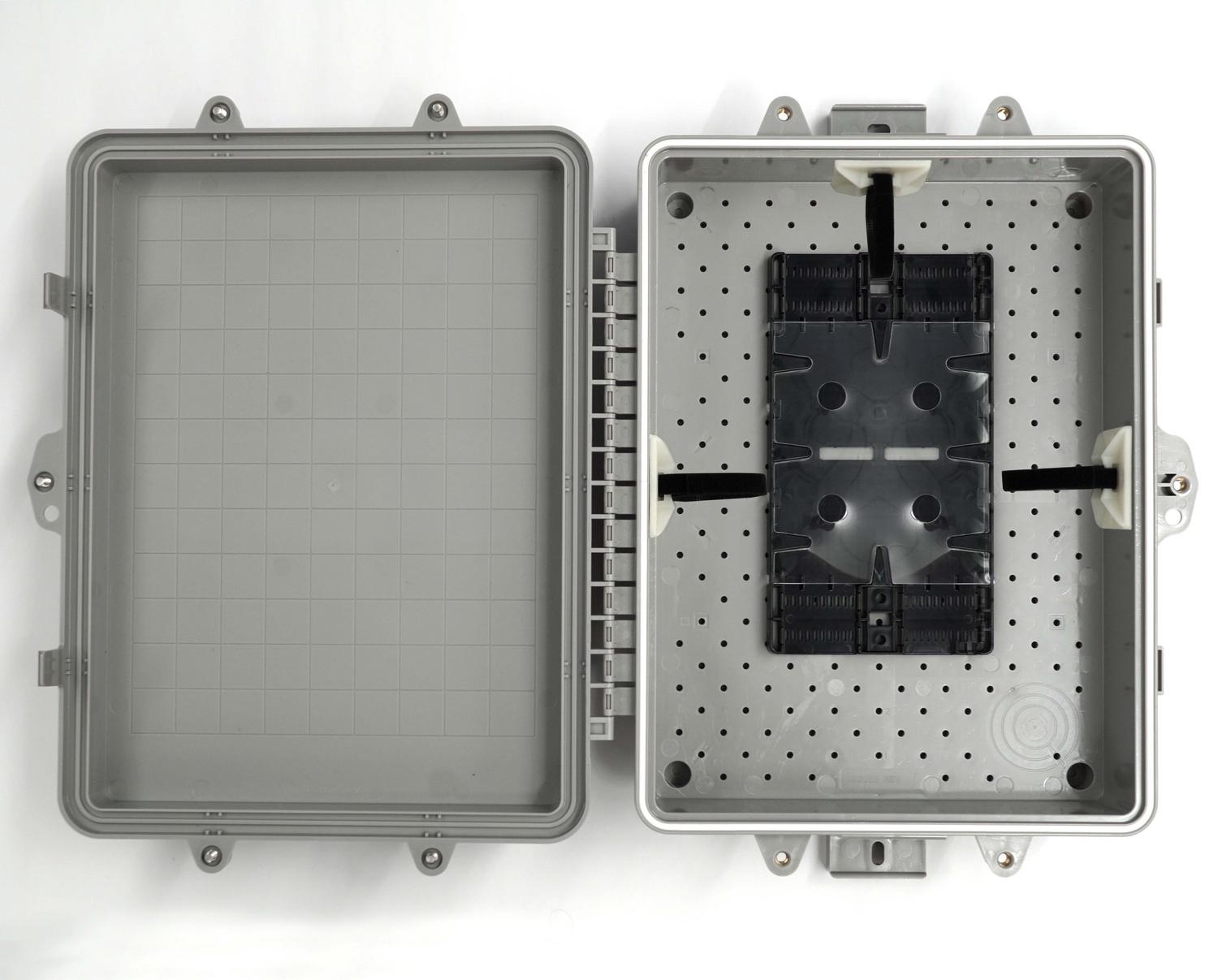

FieldSmart Mini FEC Wall Box
Technical Specifications
| Specification | Description |
|---|---|
| Dimensions | Inside: 15.24” H x 11.37” W x 4.14” D (387.09 mm x 288.80 mm x 105.16 mm) |
| Splice Density | 96 loose tube heat shrink |
| Storage Capacity Per Cable | 5' (1.52 m) of 3mm loose tube buffer OSP; 5' (1.52 m) of 3mm micro-distribution IFC |
| Mounting Options | Wall mount |
| Materials | High impact and flame retardant PVC3/high column strength and low-coefficient PBT |
Features & Benefits
Integrity
- Industry standard splice tray
- NEMA 4 rated
- Material is high impact flame retardant PVC3 with high column strength and low-coefficient PBT
Protection
- Ruggedized storage clips
- Security screw with ability to secure with padlock
- Gasket seal
Access
- Wall mount capable
- Two bottom 3/4” (19.05 m)entry/exit ports
- Removable splice trays
Investment
- Splice trays support both loose tube and ribbon constructions for single and mass fusion (ribbon) splicing
- Scalable with 24 splices per tray loose tube or 72 splices per tray ribbon
- Complete cable management solution installed from the factory
- Two Sealcon connectors are included
