FieldSmart Fiber Delivery Point (FDP) Outdoor Metal Fiber Wall Mount - 24 and 48 Port

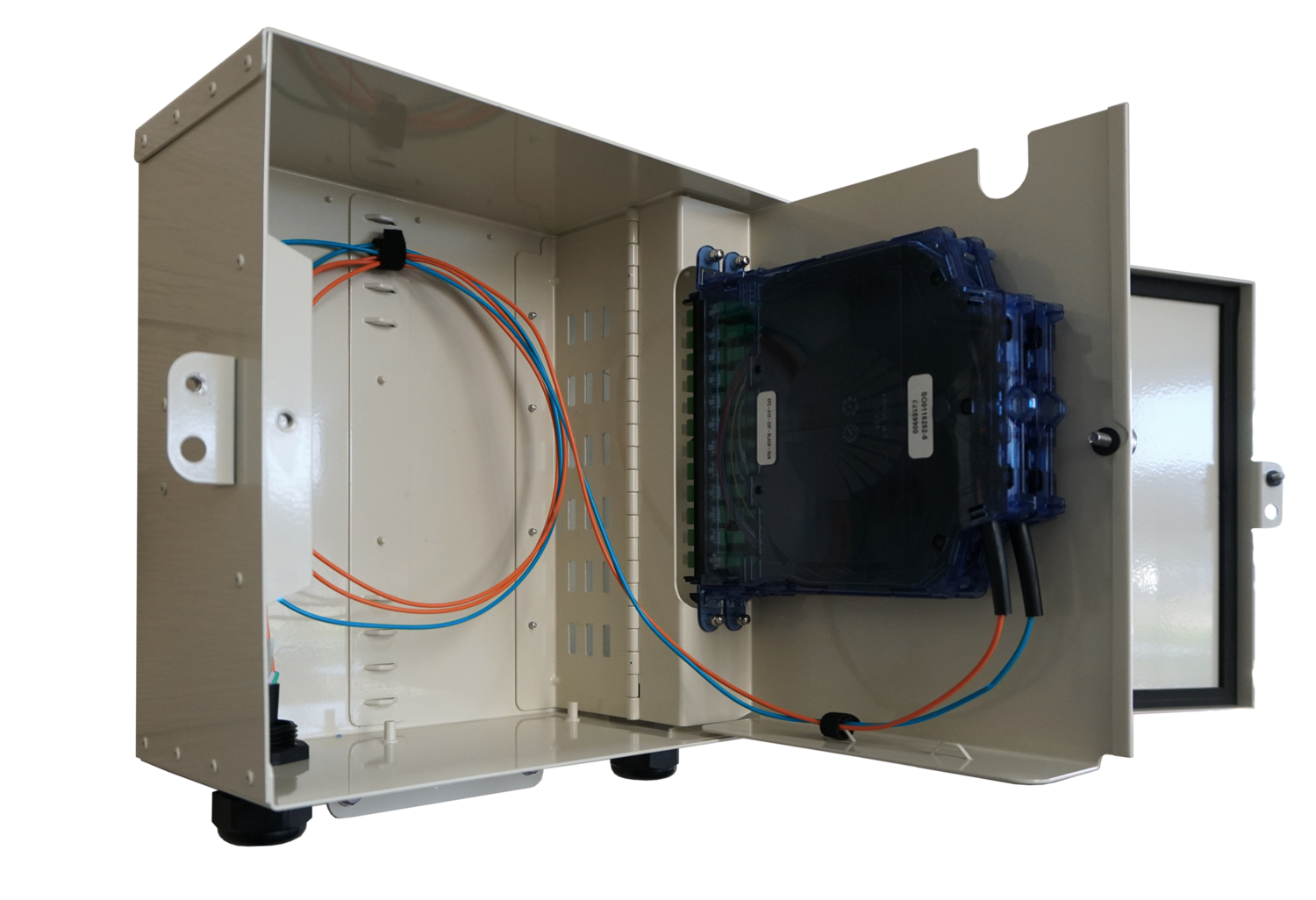

The FieldSmart FDP 24 Port Outdoor Wall Box is ideal for both residential MDUs and business-class environments. Configurable for either patch only, patch and splice (Clearfield’s in-cassette splicing solution) or MPO plug-and-play, Outdoor Wall Boxes supports all cable scenarios for the outside plant. The OSP platform is designed for the harshest environments, supporting NEMA 4 performance requirements, while providing conduit entry through field-deployed knock-outs on both the rear and bottom of the unit. Additional applications include, fiber demarcations, entrance facilities and security systems (CCTV).
Ask a Question

How Can We Help?

Product Details

Designed from conception to provide fast and easy fiber jumper routing with ease of access to all circuits, the FieldSmart FDP Outdoor Wall Box is craft-friendly, keeping the installer’s needs for quick deployment, intuitive use and ease of maintenance as the top priorities. Utilizing the Clearview® Cassette, the box easily scale from 12 to 48 ports with the industry standard adapter of choice. Ring cut or mid-span capabilities allow distribution cables to be daisy-chained and for fiber hand-off through the riser, while a swinging bulkhead provides rear-access to cassettes and protects sub-unit slack storage. With lockable doors for added protection and a solid enclosure design to protect fiber terminations from damage, the FieldSmart Fiber Delivery Point (FDP) Wall Box product line provides superior fiber management for outdoor environments.

Features & Benefits

Integrity

  • Terminations designed, tested and certified to Telcordia GR-326
  • Clearfield® FiberDeep® Guarantee: 0.2 dB insertion loss or less, exceeding industry standards
  • Fiber cable certified to GR-20 and GR-409
  • Supports all industry standard singlemode and multimode connectors
  • 100% performance tested for insertion loss, return loss and final mechanical inspect

Protection

  • Outdoor unit designed to comply with NEMA 4 requirements
  • Zinc-plated for harsh environment reliability
  • Radius protected storage for up to three meters of jacketed fiber or patch cord slack is provided (patch side)
  • Internal radius protected storage of up to one meter of 900 μm fiber and three meters of jacketed fiber (splice side)
  • Rugged steel construction with locking access doors provides security from tampering or inadvertent damage
  • Integrated fiber management protects fiber from micro-bend and macro-bend damage
  • Ability to padlock the outside door for increased security

Access

  • Removable doors and non-angled connectors enable fast, easy fiber jumper routing
  • Ships ready to install with cable clamp kit, locks and miscellaneous accessories
  • Multiple entry/exit points for feeder/customer premise cables
  • Larger design facilitates ease of access in the environments the product is deployed
  • Rear wall knockout for conduit entry
  • Accessible using a standard can wrench

Investment

  • Scalable to 48 ports of fiber using Clearview Cassettes loaded with the interface of your choice
  • Pre-configured/pre-loaded factory terminated assemblies
  • Patch only or patch and splice configurations supported
  • Box can be configured as a tie box and later converted to patch only or patch and splice, utilizing the Clearview Cassette

Technical Specifications

FieldSmart Outdoor Wall Mount Panel 24 Port 48 Port
Dimensions 12.52” H x 16.22” W x 5.75” D (318.01 mm x 411.98 mm x 146.05 mm) 12.52” H x 18.92” W x 7.26” D (318.01 mm x 480.56 x 184.40 mm)
Port Density Up to 24 ports Up to 48 ports
Storage Capacity One meter of 900 μm fiber and up to 20 feet buffer tube One meter of 900 μm fiber and up to 3 meters of jacketed fiber
Connector Types SC/UPC, SC/APC, LC/UPC, LC/APC, MPO
Cable Types Indoor/Outdoor, Outdoor (Riser/Non-Rated), Outdoor Armored (Riser/Non-Rated)
Splice Capacity 12 or 24 splice configurations in each Clearview Cassette
Cassette Types Supported Clearview® Blue
Material 16 gauge cold rolled steel (zinc chromate with almond powder coating)
