YOURx Multi-Purpose Terminal

Designed for network design flexibility, Clearfield’s YOURx Multi-Purpose Terminal (MPT) is optimized for deployments requiring mid-span, fiber drop, splitter or optical component capabilities.
Ask a Question

How Can We Help?

Product Details

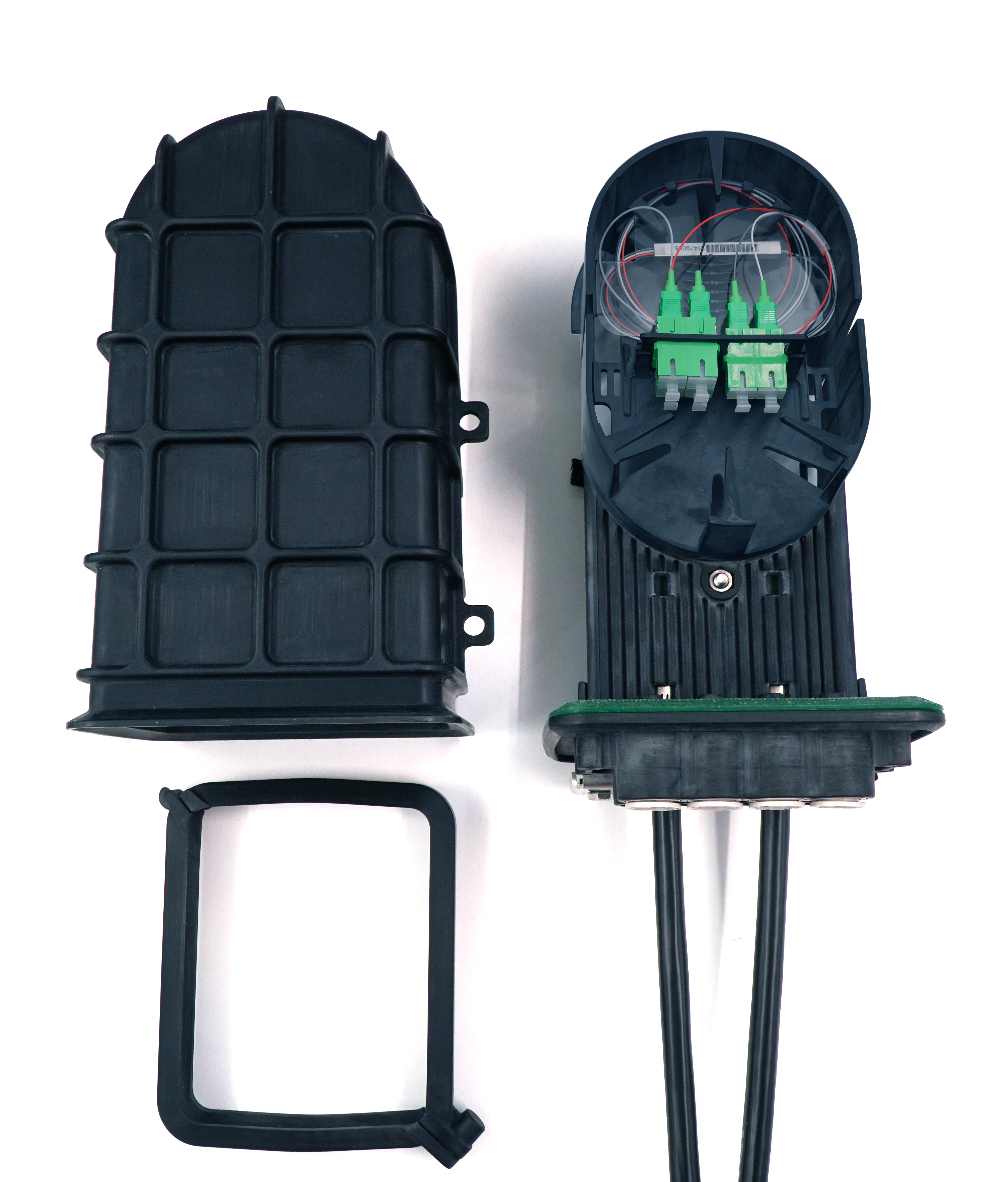

The YOURx Multi-Purpose Terminal is a sealed mid-span terminal that will accept cables with a diameter up to 0.7” (17.78mm). The terminal includes eight individual sealed distribution drops with removable tabs - all air and water-tight via YOURx FlexPort technology. The snap-in splice chip will support 12 loose tube splices or 3 mass fusion (36 fibers) splices, with the ability to store up to 8 feet per buffer tube. The terminal cable entry point uses a split sleeve grommet design for easy installation. The slide out adapter plate allows installers easy access for cleaning or testing connectors, if required. The bulkhead allows for mounting of optical components, splitters, WDMs and DWDMs. When accessing the terminal, a standard can wrench is the only tool required. The terminal can be deployed above grade, below grade, on a pole mount, or in an aerial mount.

Features & Benefits

Integrity

  • Designed, tested and certified to Telcordia GR-771
  • SC and LC Terminations designed, tested and certified to Telcordia GR-326
  • MPO Terminations designed, tested and certified to Telcordia GR-1435

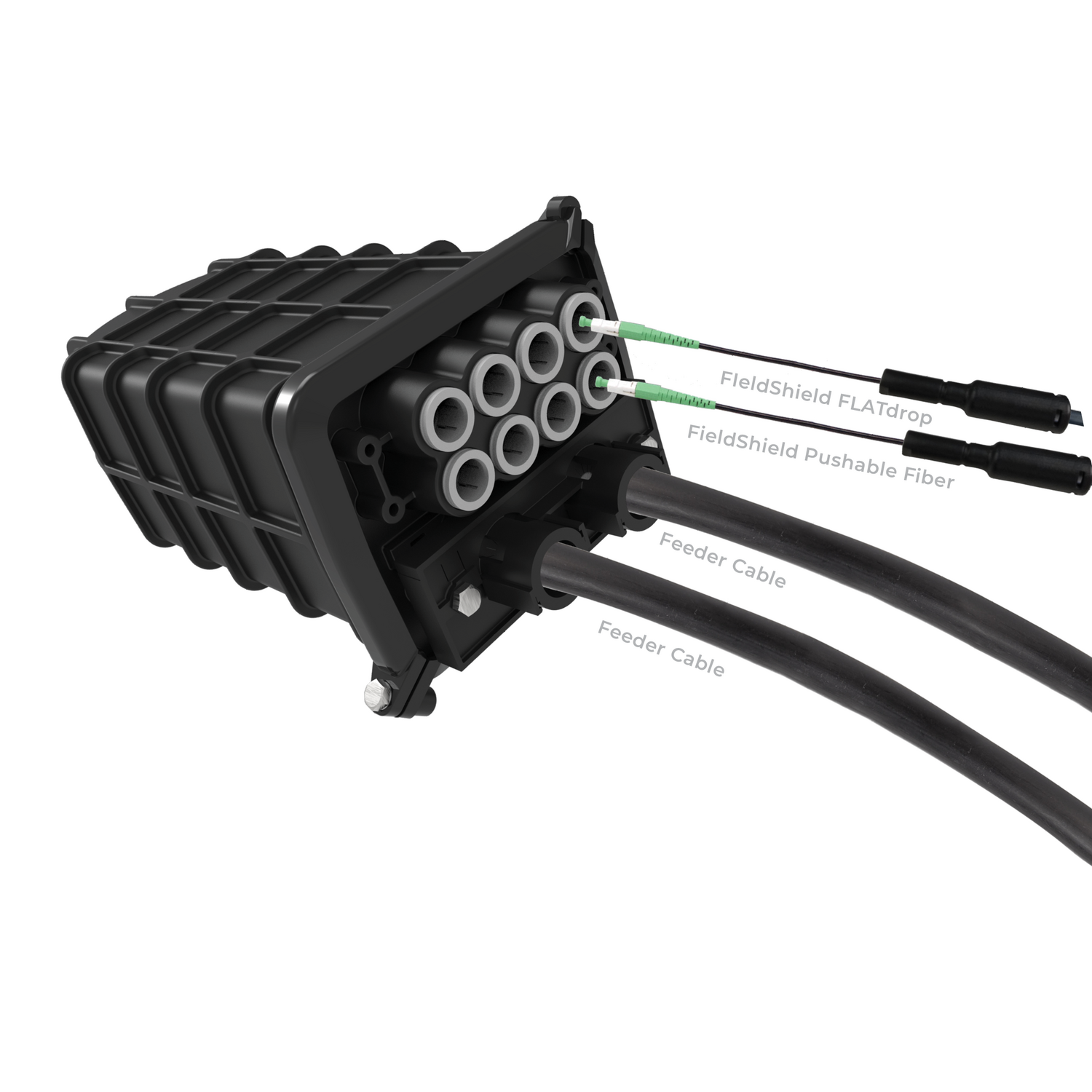

  • Supports pre-terminated FieldShield FLATdrop, FLEXdrop, StrongFiber or Pushable Fiber assemblies for drops
  • Supports SC, LC and MPO connectors

Protection

  • Optimized for use with FieldShield Microduct or FlexConnector
  • FlexConnector provides bend-limiting, strain-relief protection and water-tight seal
  • Black UV resistant thermoplastic design to resist corrosion
  • Environmentally sealed terminal providing maximum reliability and durability in the harshest OSP environments

Access

  • Fieldshield Pushable Fiber, FieldShield FLATdrop and round cable. (IMPORTANT - Be sure to select the correct grommet!)
  • Splicing or plug-and-play configuration
  • Optical component solution maximize existing architectures or relief from exhausted fiber scenarios

Investment

  • Modular design allows replacement of bulkhead or face plate in case where damage has occurred
  • Flexibility in configuration provides designing network easier, utilizing the same terminal
  • Using the patch only stub design allows speed to deployment in plug-and-play design

Technical Specifications

Dimensions 12.44"L x 6.76"W x 5.49"H (315.97 mm x 171.70 mm x 139.44 mm)
Mounting Options

Below Grade — Vaults - V5A-AZP (17" x 30" x 24" or V6A-AZP (24" x 36" x 24")

Above Ground — Pedestals - FPP-8820 (8" x 8' with 12" high base), FPP-101020 (10" x 10" with 20" high base) or FPP-121230 (12" x 12" with 30" high base)

Pole or Aerial/Strand

Internal Slack 8' of 12 fiber buffer tube
Feeder Cable Accepts cable diameter of up to .70" (17.78 mm) * IMPORTANT - Be sure to select correct grommet
Distribution Ports Eight 14 mm ports; ports are designed to accept FieldShield FlexConnector
Connector Types SC/APC, SC/UPC, LC/APC, LC/UPC and MPO Duplex
Materials Black UV Resistant Thermoplastic
Weight 4 lbs.
