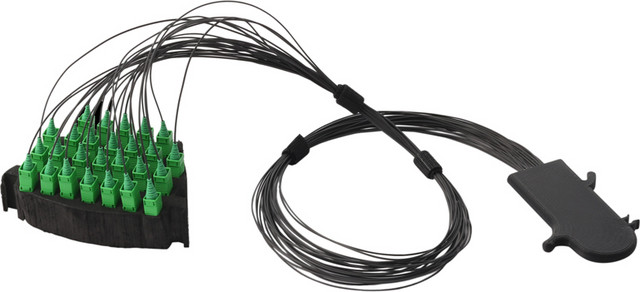

The WaveSmart High Density (HD) Splitter is designed to work with the FieldSmart Makwa and the FieldSmart 144 Port PON Pedestal Insert Kit. Consistent with a simple yet innovative design methodology, the WaveSmart High Density (HD) Splitter utilizes a 75% smaller package over earlier designed splitter packages.

The WaveSmart High Density Splitter uses 900 μm jacketed legs and offers superb fiber management. Clearfield® utilizes a special outdoor rated material that not only helps control thermal expansion and contraction, but goes one step further and remains flexible at extreme temperatures down to -40°F. By making it easier to handle, there is less chance that the fiber will be routed incorrectly or that damage will occur during this process.

Technical Specifications

Specification Description
Dimensions 85 mm L x 35 mm W x 6 mm H
Core Size and Type Singlemode (G.657.A)
Leg Length 27”
Jacket O.D. 900 μm
Connector Types SC/UPC, SC/APC
Splitter Types 1 x 32, 1 x 16, 1 x 8, 1 x 4
Operating / Storage Temp -40°C to 85 (-40°F to 185°F)

Features & Benefits

Integrity

  • RUS listed
  • Terminations are designed and tested to Telcordia GR-326
  • 100% performance tested for insertion loss/return loss and final mechanical inspection
  • Optical component configuration use devices that are compliant to Telcordia GR-1221/1209

Protection

  • WaveSmart’s High Density Splitter package protects the Planar Lightwave Circuit in all environments
  • Inputs and outputs protected using high quality 900 μm up-jacket

Access

  • Individual splitters come preloaded in parking lot for easy access and turn-up
  • Each leg is 27” to reach anywhere in the Makwa
  • Each leg labeled for easy identification
  • Red jacket on input leg

Investment

  • Splitter package supports one 1 x 32, two 1 x 16 or four 1 x 8 configurations without penalty in real estate or port counts
  • “Grow-as-you-go” - only buy splitters as customer take rates increase
  • SC/UPC or SC/APC connectors
