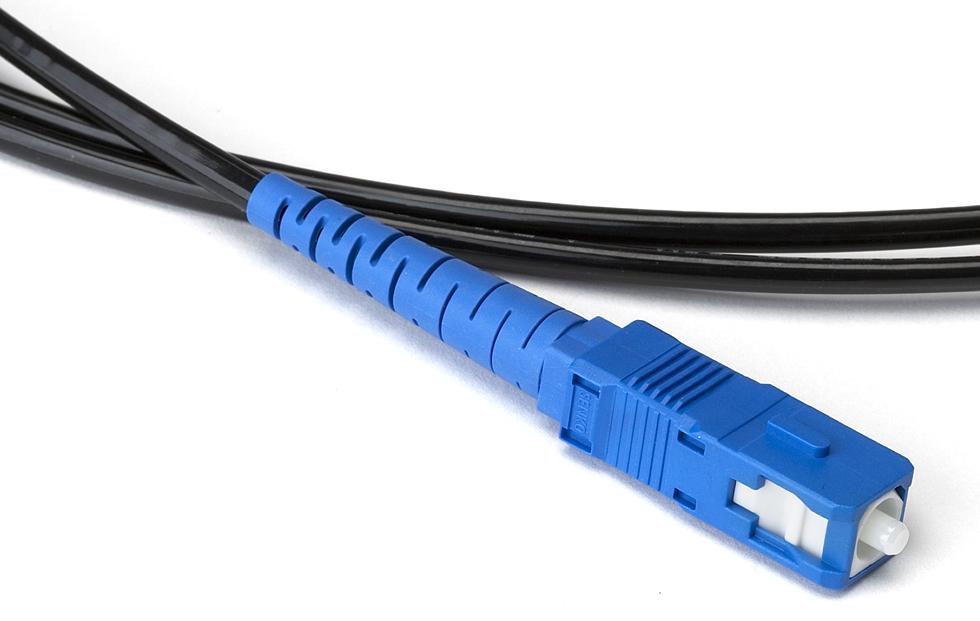

Ruggedized Fiber Jumpers

These fiber jumpers are ideal when splicing FTTH drops in the ONT/NID.  Indoor cordage stiffens and retains cable memory in cold weather.  These jumpers remain flexible even in extreme conditions.  These assemblies use bend-insensitive fiber to help eliminate bend-radius issues inside the NID.  These patch cords also work well in outside plant cross-connect cabinets.

Ask a Question

How Can We Help?

Product Details

Clearfield® Outdoor Ruggedized Fiber Jumper Cables can be ordered in any industry standard connector type.  Any length in feet or meters is available.

Clearfield recommends the use of Ruggedized OSP Jumpers when splicing in the NID or ONT. We also suggest 2 meter fiber jumpers for use in FieldSmart cabinet applications. Clearfield stocks common length SC APC Ruggedized Fiber Jumpers for customer convenience. For non-standard lengths, lead times will apply.

Features & Benefits

Integrity

  • Terminations are designed and tested to Telcordia GR-326
  • Clearfield® FiberDeep® Guarantee: 0.2 dB insertion loss or less, exceeding industry standards
  • Supports industry standard singlemode connectors
  • Singlemode bend-insensitive ITU standard G.657.A glass fiber

Protection

  • Uses Ruggedized OSP rated 2 mm black jacketed cable
  • Patchcords remain flexible and durable in extreme temperatures of -55°C to 85°C (-67°F to 185°F)

Access

  • Compact jacket design minimizes cable pile up
  • Industry standard terminations include ST, SC, FC, LC (ask a Clearfield representative for other available connectors)

Investment

  • Outdoor Ruggedized Fiber Jumper Cables offer an economical solution for deploying fiber in any OSP optical network
  • Environmentally stable, low-insertion loss, minimal back reflection
  • All assemblies are 100% tested

Technical Specifications

Specification Description
Core Size and Type Singlemode (G.657.A1)
Fiber Count Simplex (1-fiber)
Jacket O.D. 2.0 mm
Cable Types Outdoor - Ruggedized Polyurethane
Connector Types SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC
Operating Temperature -40°C to 85°C  (-40°F to 185°F)

Minimum Performance Specifications for Terminated Singlemode Connectors

Connector Type Ferrule Material Polish Type Ins. Loss Typical (dB) Max Ins. Loss (dB) Min. Ret. Loss (dB)
ST Ceramic UPC 0.15 0.20 55.00
SC Ceramic UPC 0.15 0.20 55.00
FC Ceramic UPC 0.15 0.20 55.00
LC Ceramic UPC 0.15 0.20 55.00
SC Ceramic APC 0.15 0.20 65.00
FC Ceramic APC 0.15 0.20 65.00
LC Ceramic APC 0.15 0.20 65.00
