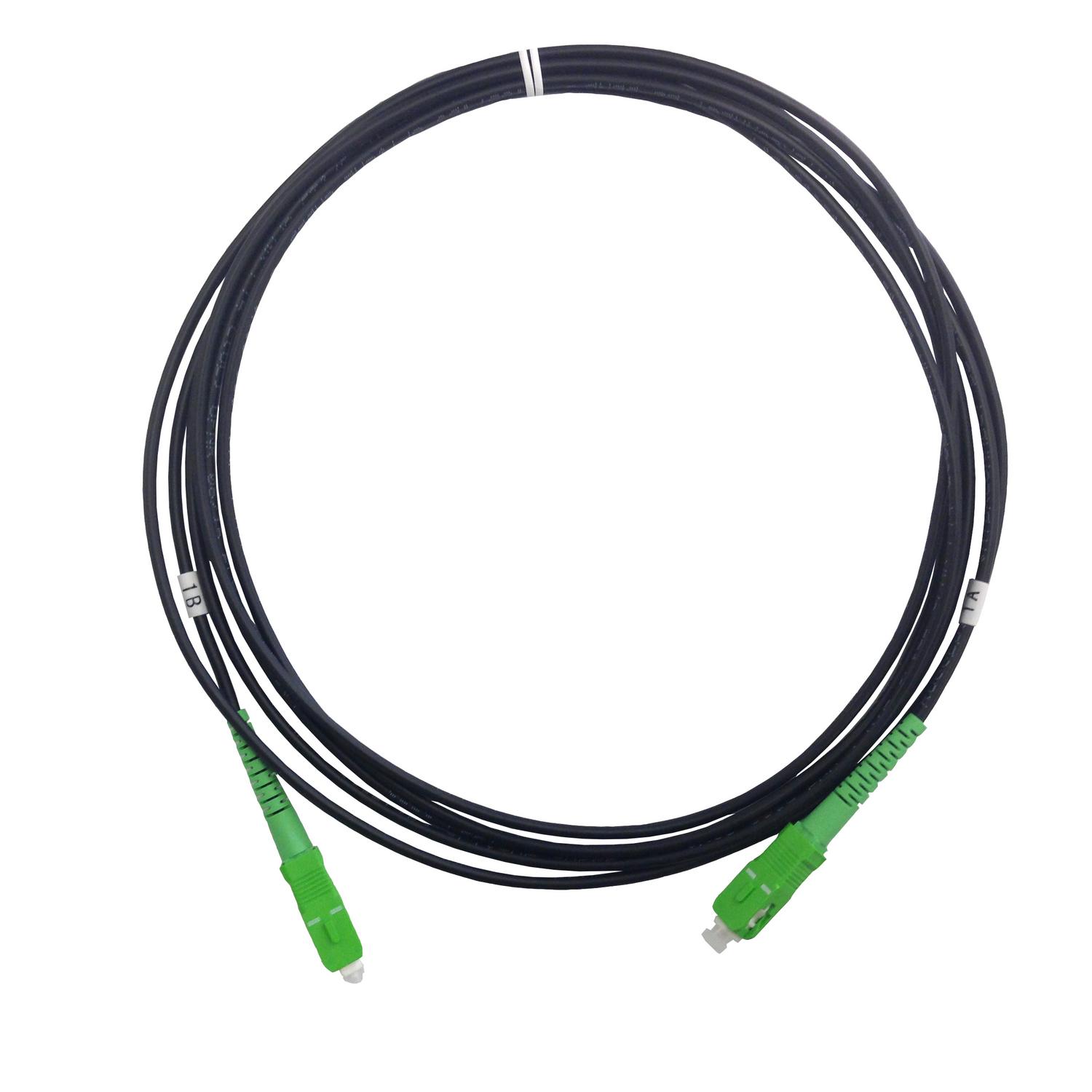

Indoor-Outdoor Bend-Insensitive Fiber Jumper Cables

A fiber jumper, sometimes called a fiber patch cord, is a length of fiber cabling fitted with connectors at each end. They are used to connect end devices or network hardware.
Ask a Question

How Can We Help?

Product Details

Indoor-Outdoor Bend-Insensitive Fiber Jumper Cables are used in a variety of carrier networks and private network environments. The key to manufacturing high-performance fiber assemblies is using high quality connector components and controlling the termination and polishing process. Clearfield® monitors its automated polishing process to exceed industry specifications for insertion and return loss, ensuring a top-quality product.

Features & Benefits

Integrity
  • Terminations are designed and tested to Telcordia GR-326
  • Clearfield® FiberDeep® Guarantee: 0.2 dB insertion loss or less, exceeding industry standards
  • Supports industry standard singlemode connectors
  • Singlemode G.657.B3 bend-insensitive glass fiber
Protection
  • Indoor-Outdoor rated bend-insensitive jacket options available
  • Available in simplex 3mm and 4.8mm jacket
Access
  • Compact jacket design minimizes cable pile up
  • Industry-standard terminations include ST, SC, FC, LC for 3mm and SC only for 4.8mm
Investment
  • Indoor Bend-Insensitive Fiber Jumper Cables offer an economical solution for deploying fiber in any optical network
  • Environmentally stable, low-insertion loss, minimal back reflection
  • All assemblies are 100% tested

Technical Specifications

Specification Description
Core Size and Type Singlemode G.657.B
Fiber Count Simplex Fiber Only
Jacket O.D. 3mm, 4.8mm
Cable Types Indoor/Outdoor Riser
Connector Types 3mm = SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC; 4.8mm = SC/UPC, SC/APC
Operating Temperature -40°C to 85°C  (-40°F to 185°F)

Minimum Performance Specifications for Terminated Singlemode Connectors

Connector Type Ferrule Material Polish Type Ins. Loss Typical (dB) Max Ins. Loss (dB) Min. Ret. Loss (dB)
ST Ceramic UPC 0.15 0.20 55.00
SC Ceramic UPC 0.15 0.20 55.00
FC Ceramic UPC 0.15 0.20 55.00
LC Ceramic UPC 0.15 0.20 55.00
SC Ceramic APC 0.15 0.20 65.00
FC Ceramic APC 0.15 0.20 65.00
LC Ceramic APC 0.15 0.20 65.00
