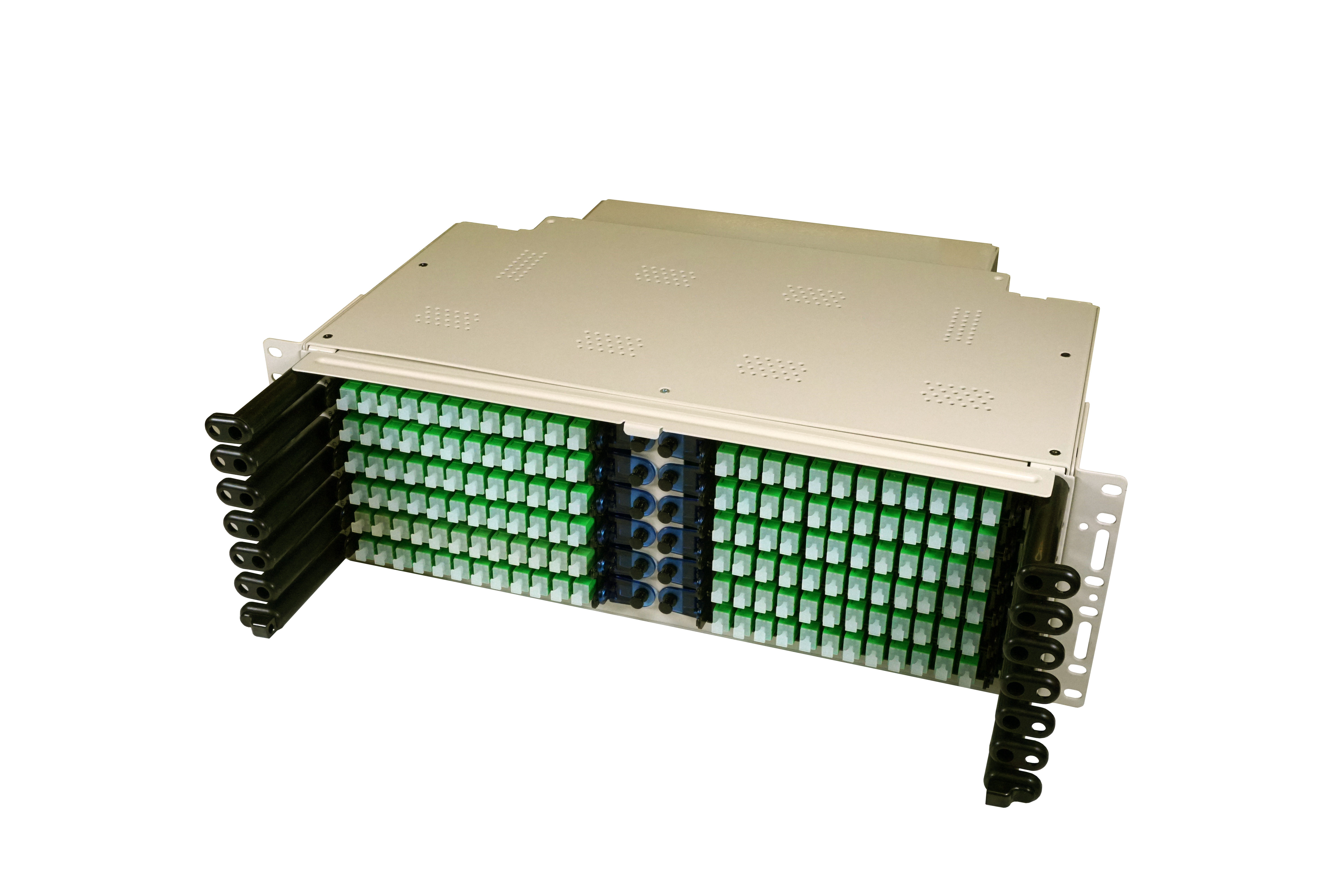

FieldSmart FxMP Tie Panel
The FieldSmart FxMP Tie Panel is a high density, low-maintenance fiber distribution panel for use in a 19” or 23” (482.60 mm or 584.20 mm) frame. Tie panels are intelligently designed to provide the user with superior fiber access, utilizing craft-friendly radius protected fiber management for routing and deploying fiber jumpers or multi-fiber cables, on both sides of the adapter plate for cross-connect environments.
Technical Specifications
| Port Density | 24 | 72 | 96 | 144 | 288 |
|---|---|---|---|---|---|
| Dimensions | 1.75" H x 17.5" W x 14.40" D (44.45 mm x 444.50 mm x 365.76 mm) | 3.5" H x 17.5" W x 14.40" D (88.90 mm x 444.50 mm x 365.76 mm) | 4” H x 17.5" W x 14.40" D (101.60 mm x 444.50 mm x 365.76 mm) | 6” H x 17.5" W x 14.40" D (152.40 mm x 444.50 mm x 365.76 mm) | 11” H x 17.5" W x 14.40" D (279.40 mm x 444.50 mm x 365.76 mm) |
| Ratings | Compliant to Telcordia GR-449 | ||||
| Cassette Types Supported | N/A | ||||
| Connector Types | SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, MPO | ||||
| Splice Capacity | N/A | ||||
| Storage Capacity | N/A | ||||
| Front Protection | 4.75” (120.65 mm) radius fingers | ||||
| Material | Steel and aluminum with almond or black powder coating | ||||
Features & Benefits
Integrity
- RUS listed
- Compliant to Telcordia GR-449, GR-20 and GR-409
- Optical component configurations use Telcordia GR 1221/1209 compliant devices
- Terminations are designed and tested to Telcordia GR-326
- Supports all industry standard singlemode and multimode connectors
- Ruggedized hinged and removable front cover
- Cable clamp protects against twisting and pistoning at the assembly breakout point
- Top metal protective cover slides out for top protection over the fiber cables and can sit in three positions
- Front access with removable adapter plates for testing, cleaning and maintenance
- Front and rear access to panel
- Reversible Mounting Ears provide added flexibility
- Panel sizes available in 1.75” (44.45 mm) 1RU (24 ports), 3.50” (88.90 mm) 2RU (72 ports), 4” (101.60 mm) (96 ports), 6” (152.40 mm) (144 ports) and 11” (279.40 mm) (288 ports)
