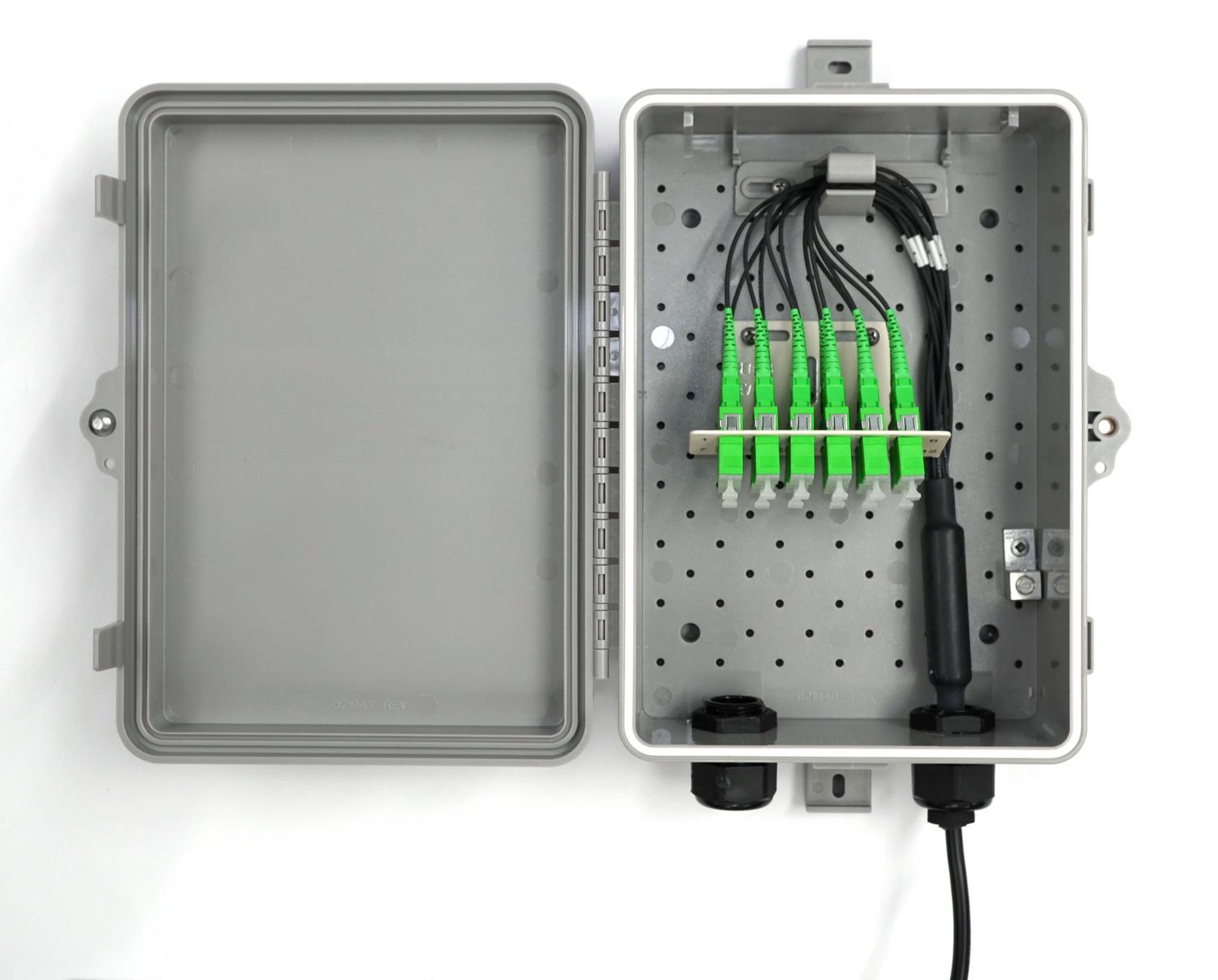

FieldSmart Fiber Delivery Point (FDP) Small Cell Wall Box

Engineered to land small to medium fiber terminations in a convenient wall box design, the FieldSmart FDP Small Cell Wall Box is ideal for a variety of applications, including harsh environment locations surrounding fiber demarcation, entrance facilities, FTTP drop boxes and cell backhaul.
Ask a Question

How Can We Help?

Product Details

® FDP Small Cell Wall Box comes with a factory-installed cable assembly, supporting up to 24 fibers within the fiber box. Factory-installed cable reduces the operating costs of fiber deployment by reducing installation times.

Features & Benefits

Integrity

  • RUS listed
  • Supports industry standard SC and LC singlemode connectors
  • Dual snap locks to ensure lid seals to base
  • NEMA 4 rated

Protection

  • Slack storage clips for both incoming and outgoing fibers
  • Security screw with ability to secure padlock
  • Gasket seal
  • Grounding lug included

Access

  • Wall and pole mount\
  • Easy to install with both internal and external mounting holes
  • Two bottom 3/4" (19.05 mm)entry/exit ports are supported with ship-along Sealcon connectors

Investment

  • Pre-connectorized cable assemblies eliminate labor and speed network construction
  • Patch only
  • One box for a variety of application users

Technical Specifications

Specification Description
Dimensions 12.17” H x 8.62” W x 3.91” D (309.12 mm x 218.95 mm x 99.31 mm)
Port Density Up to 24 LC Ports
Connector Types SC/UPC, SC/APC, LC/UPC, LC/APC
Cable Types Indoor Riser, Indoor Plenum, Outdoor (Riser/Non-rated), FieldShield®
Material  UV Stabilized, Flame Retardant Polymer (PVC)
Mounting Options Wall and Pole Mount
