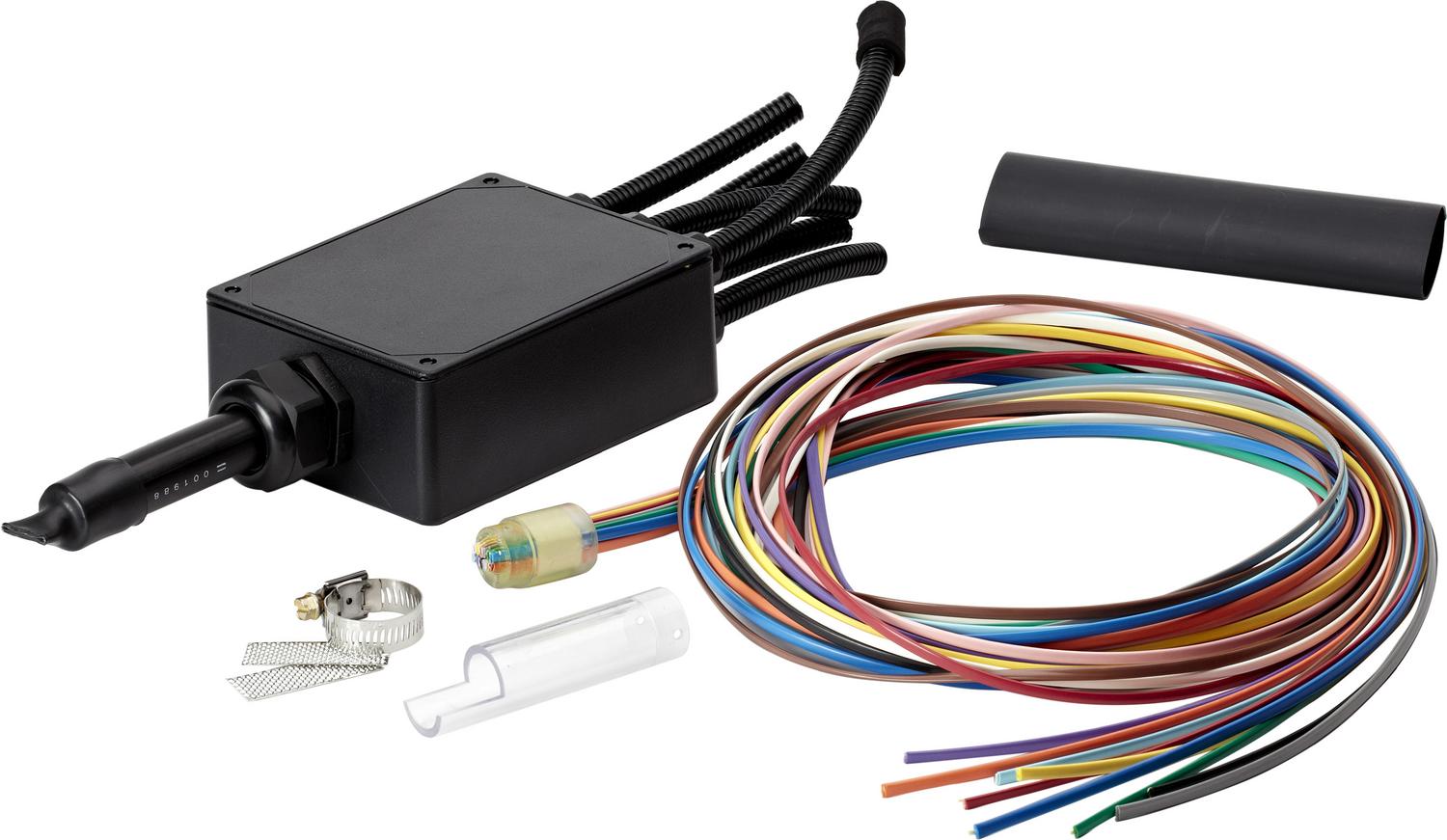

High Fiber Cable Ribbon Breakout Kit

A High Fiber Ribbon Breakout Kit is used for fiber management and routing for fusion and mechanical splicing field termination of multi-fiber ribbon cable applications in both inside and outside plant environments.

Ask a Question

How Can We Help?

BABA Compliant

BABA Compliant Option Ready for Quote

This product meets BABA compliance standards and is available to quote. For more details, please contact our sales team at (800) 422-2537 or complete the inquiry form here.

Product Details

Ribbon Fan Out Kits are designed to breakout and manage high fiber count ribbon cables. Each 12-fiber ribbon in cable is routed into individual color-coded tubes for protection and transport into Clearview® optimized products. The kit includes the cable body, breakout body and adhesive shrink tubing.

When ribbon fiber in excess of 144 is required, the High Fiber Ribbon Breakout Box is used in conjunction with the Ribbon Fan Out Kit for up to 864 fibers.

Features & Benefits

Integrity

  • Fits any manufacturer’s cable

Protection

  • Furcation tubing protects and manages bare ribbon fiber

Access

  • No special tools required
  • Simple and easy breakout installs in minutes
  • Easily identified individual color-coded tubing

Investment

  • Fan Out Kit provides protected transport path for ribbon cable to Clearview Cassettes

Technical Specifications

Specification Description
Fan Out Kit Diameter 144-Fiber Fan Out Kit: 19.10 mm (0.75”)
Fan Out Kit Length

Cable Body: 76.32 mm (3”)

Breakout Body: 31.80 mm (1.25”)

Combined: 108.12 mm (4.25”)

Fan Out Tubing Length 2 meters (78.60”); Custom Lengths Available
Maximum Tube Diameter 144-Fiber Fan Out Kit: 2.59 mm (0.495”)
Breakout Box Dimensions 6.25” H x 4.75” W x 2.25” D
