StreetSmart Small Count Fiber Hand-Off Box

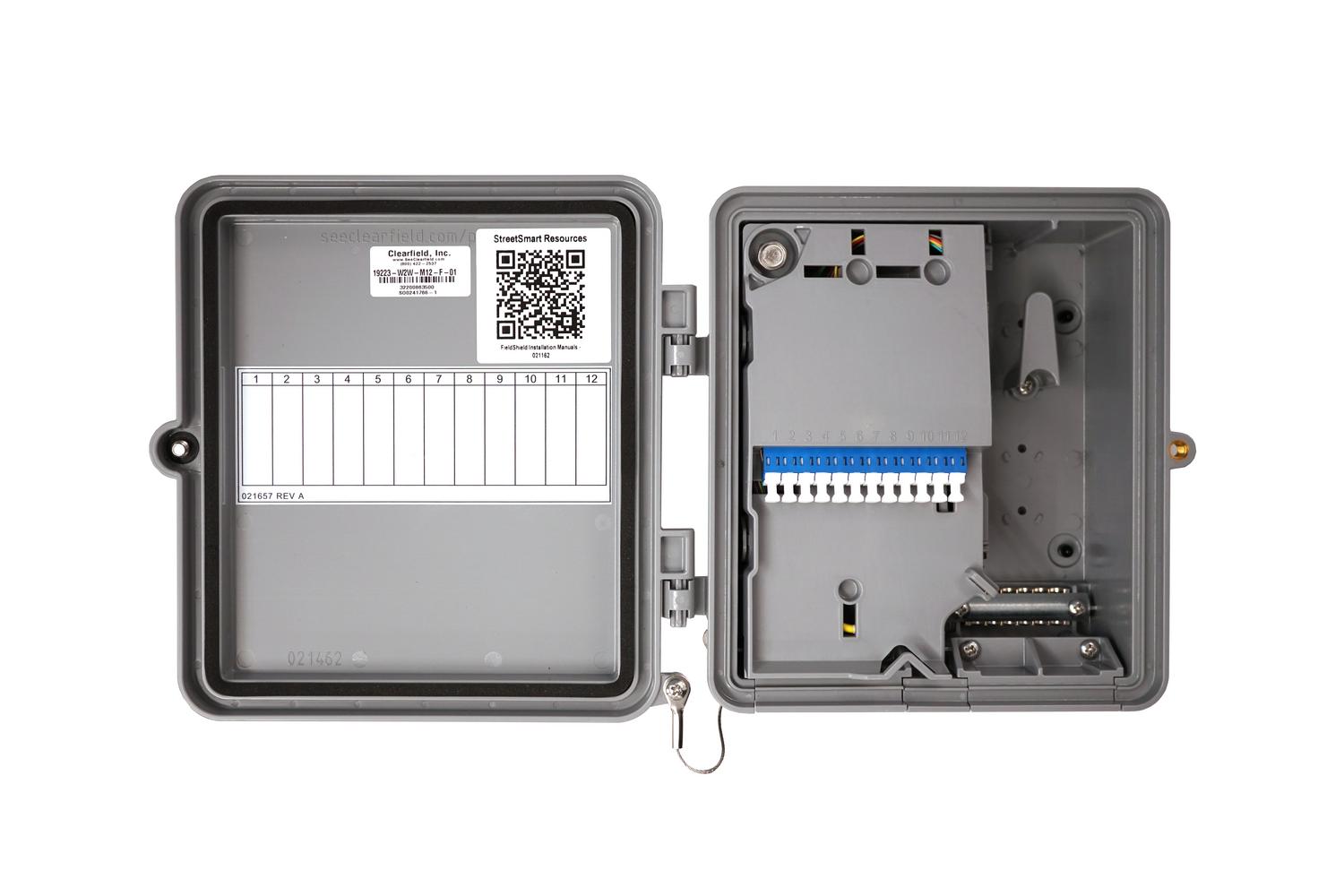

StreetSmart Small Count Fiber Hand-Off Box Door Open
StreetSmart Small Count Fiber Hand-Off Box Door Open
StreetSmart Small Count Fiber Hand-Off Box Door Open
StreetSmart Small Count Fiber Hand-Off Box Door Closed
StreetSmart Small Count Fiber Hand-Off Box Door Open
StreetSmart Small Count Fiber Hand-Off Box Door Open
StreetSmart Small Count Fiber Hand-Off Box Door Closed
The StreetSmart Small Count Fiber Hand-Off Box serves as a network demarcation point between the backhaul provider and the network operator or as a demarc point for small count MDUs. Designed with a hinged plate and 216 locking mechanism, access is secured between craft responsibilities. The craft-friendly GR-771 box can be mounted aerially, on a pole or on a wall. The compact design makes it ideally suited for inside a monopole.
Ask a Question

How Can We Help?

Data Sheet
Installation Manual
Videos

Product Details

The StreetSmart Small Count Fiber Hand-Off Box can be configured in either 6 or 12 terminations in both SC or LC connections. The StreetSmart Small Count Hand-Off Box comes in two configurations. The plug-and-play option utilizes an MPO or HMFOC (hardened multifiber optical connector) connector or the patch only which comes with factory installed cable in length up to 3000’. Designed with a tethered removable door, lay in grommet, angled adapter for easy cleaning and testing, no special tool requirements makes the box extremely craft-friendly.

Features & Benefits

Integrity
  • Designed, tested & certified to GR-771
  • Designed to comply with NEMA 4
  • Terminations designed, tested and certified to GR-326
  • MPO terminations designed, tested and certified to Telcordia GR-1435
Protection
  • 216 locking (can wrench)
  • Lay in grommet with cable retention clamp
  • Industrial grade door gasket
Access
  • Secure plate between backhaul provider and mobile operator
  • Removeable tethered door
  • Angled adapter for easy testing and cleaning
Investment
  • Cable management guides
  • Lay in grommet for both backhaul and network provider
  • Cable retention clamps

Technical Specifications

Dimensions 8” H x 8” W x 3” D
Box Option Plug-and-play or patch only
Output Connector  SC/APC, SC/UPC, LC/UPC, LC/APC or HMFOC
Input Connector MPO, HMFOC or Patch Only
Cable Entrance Single entrance for both provider and network
Labeling Designation label on door
Mounting Options Pole, Wall or Aerial
