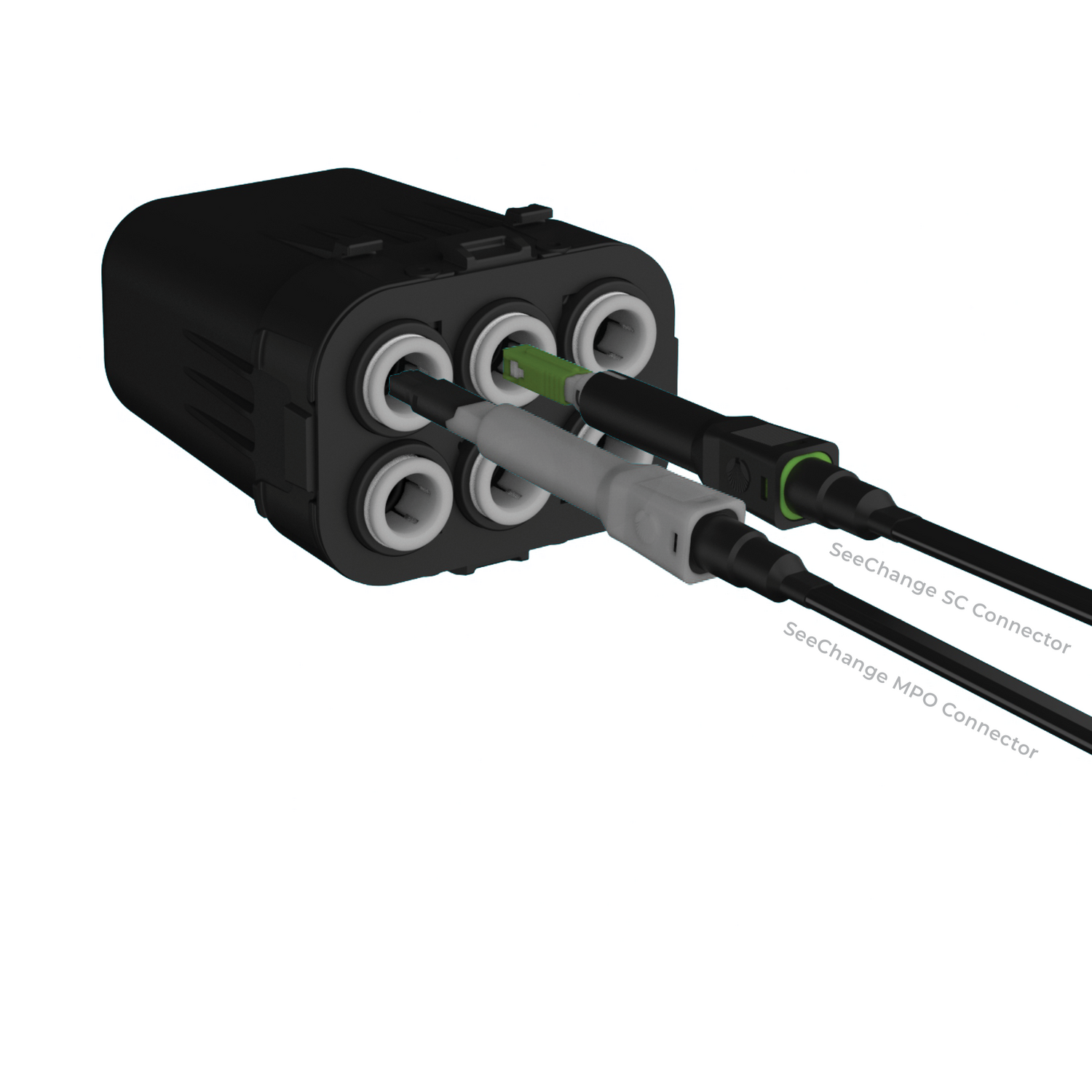

SeeChange Terminal and Hardened Connector System
SeeChange Terminal with cover on
SeeChange Terminal Bottom View
SeeChange SC Connector
SeeChange MPO Connector
The SeeChange Terminal is Clearfield’s small, carrier grade plug-and-play access terminal for use in FTTx applications, including Fiber to Home and Fiber to Business. It’s small size also makes it an attractive choice to deliver fiber to cell towers and inside 5G decorative poles. The terminal provides an interface between incoming feeder fiber and single fiber drop cables.
Ask a Question
Product Details
The SeeChange Terminal is fully sealed and includes a multifiber MPO input port, 2 or 4 single fiber drop ports and a multifiber MPO express output port. The MPO express output port is used to daisy chain to other SeeChange terminals deeper in the neighborhood. All connections to the terminal are made using SeeChange hardened connectors that can be installed with entry level technicians for quick deployment. SeeChange hardened connectors are ruggedized for OSP applications and meet Clearfield’s FiberDeep performance levels for low insertion loss (0.2dB max IL for single fiber and 0.35dB max IL for MPO assemblies). Both centralized split and distributed split configurations are supported by the SeeChange Terminal. The terminal can be deployed below grade in vaults, handholes and flower pots, as well as above grade in pedestals or on a pole, and can be hung overhead on a strand for aerial applications.
Features & Benefits
Integrity
- SeeChange Terminal GR-771 Compliant
- Hardened SeeChange Connectors GR-3120 and GR-3152 compliant
- Supports SeeChange MPO and SeeChange SC/APC connectors
Protection
- Environmentally sealed for the harshest OSP environments
- Molded with UV resistant thermoplastic material
- Above grade, below grade and aerial mounting options
- Carrier grade GR compliant terminal and connectors
Access
- 1 SeeChange MPO input port
- 2 or 4 SeeChange SC APC drop ports
- 1 SeeChange MPO express output port
- Compact footprint reduces space in handholes and pedestals
Investment
- Strategic configurations to reduce inventory and shorten lead times
- Repeatable design reduces engineering time
- Plug-and-play connections speed installations
- Centralized and distributed split configurations available
- Supports FTTx or 5G cellular application
Technical Specifications
| Dimensions | 3 x 4 x 5.5” (83.8mm x 111.8mm x 139.7mm) |
| Mounting Options | Below Grade: handhole or flowerpot, Above Grade: Pole or Pedestal with mounting bracket, Aerial: Strand mount with Deltec strap and spacers |
| Material | Black UV resistant Thermoplastic |
| Input Port | (1) SeeChange 14 mm MPO |
| Drop Ports | (2) or (4) SeeChange 14 mm SC/APC |
| Output Express Port | (1) SeeChange 14 mm MPO |
| Weight | 13.3 ounces |
