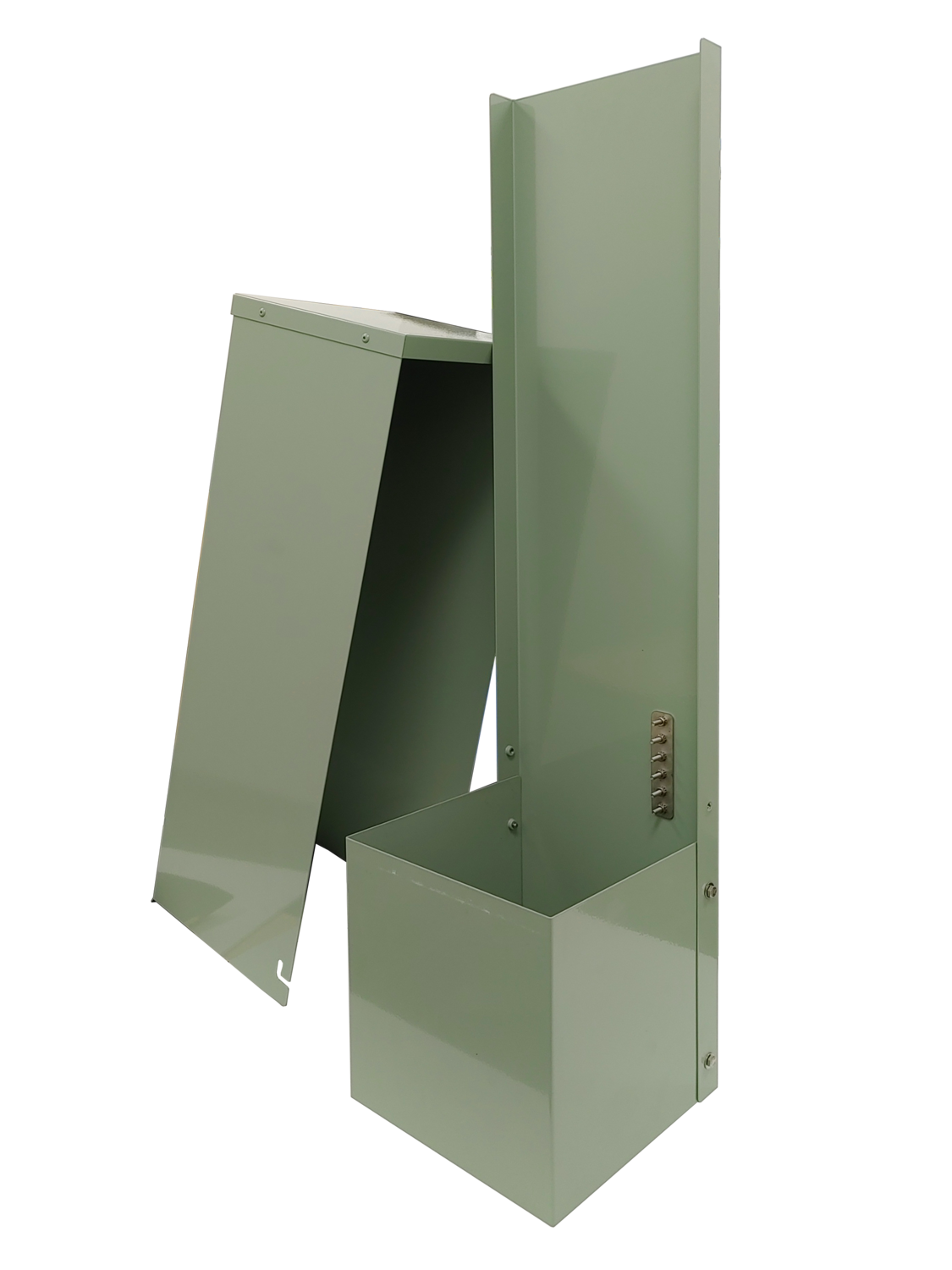

CraftSmart FiberFirst Metallic Pedestal

The CraftSmart® FiberFirst Metallic Pedestal provides splice or interconnect connectivity at the access point for the last mile drop.

Ask a Question

How Can We Help?

Product Details

The CraftSmart FiberFirst Metallic Pedestal is an empty pedestal that allows customers to deploy in a wide variety of applications, including field-tested slack management and fiber splice trays to provide a craft-friendly splice only access solution. The CraftSmart FiberFirst Metallic Pedestal can be configured to support the specific drop cable, multi-fiber and ring cut requirements. The solid surface back plane makes it possible for customers to integrate multiple products inside the pedestals.

Features & Benefits

Integrity

  • Designed to be a cost-effective fiber delivery point.
  • Preconfigured drill points make it easy to add fiber management, brackets and accessories.
  • Made from 18 Gauge Galvanneal - with powder coat paint.

Protection

  • Open architecture
  • Strength, rigidity and security all in a high-performance powder coated galvanneal material.
  • Designed to Telcordia GR-13 and RUS PE-91 specifications.
  • Single point self-locking cover provides secure pedestal locking and eased craft access.

Access

  • Easy lift-off one piece front cover allows complete access to interior of pedestal.
  • Can wrench fasteners for securing/locking.
  • Drill points included in backplane for accessory mounting.

Investment

  • Cost-effective delivery point solution.
  • Up to 12 splice trays with Clearfield regular drop cable assembly or industry standard HFOC
  • Integrates distribution splices, splitters and slack cable for a cost-effective flexible option for any FTTX deployment.

Technical Specifications

CraftSmart FiberFirst Pedestal

Specification Description
Dimensions  42.1” H x 10.3” W x 10.2” D (1098.55 mm x 266.70 mm x 266.70 mm)
Cover Material 31.25” (793.75 mm)
Base Material 12” (304.80 mm)
Material Powder coated galvanized steel
Density Up to 288 splices (24 trays) loose tube, Up to 24 ribbon splices (2 trays)
Number of Splice Trays Up to 12 loose tube (24 with additional splice tray bracket), Up to 2 ribbon
Splice Capacity 12 splices in each splice tray
Splice Tray Dimensions 1/2“H x 61/2”W x 5”D loose tube, 5.3”W X 10.8”H X .86”D ribbon
Weight/Shipping 28 lbs. per ped - 16 per pallet
