FieldSmart Fiber Crossover Distribution System (FxDS) Bulkhead Only

Provides an interconnect or cross-connect environment for up to 288 ports of fiber.

Ask a Question

How Can We Help?

BABA Compliant

BABA Compliant Option Ready for Quote

This product meets BABA compliance standards and is available to quote. For more details, please contact our sales team at (800) 422-2537 or complete the inquiry form here.

Product Details

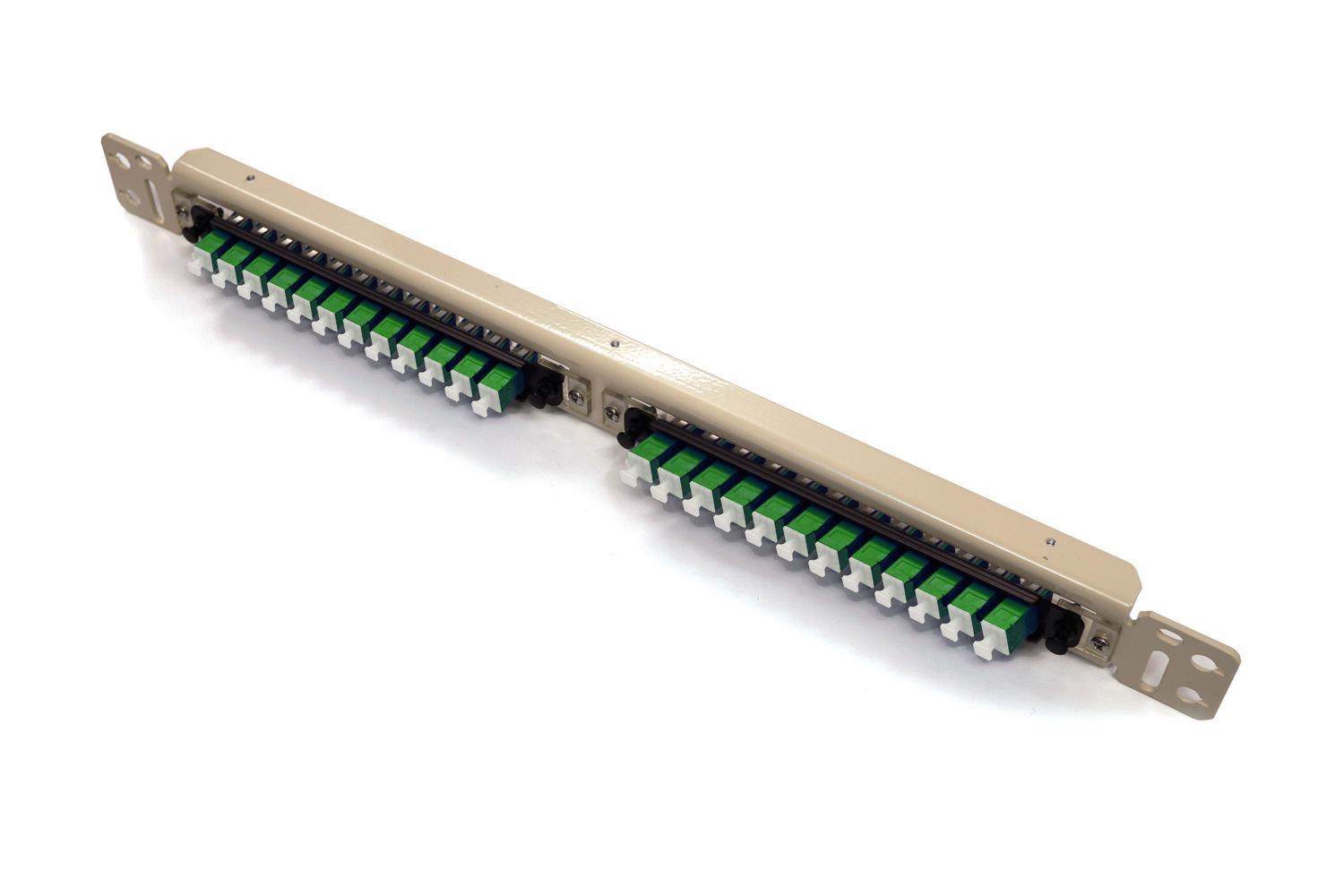

The FieldSmart FxDS Bulkhead is a high density, low maintenance bulkhead for use in a 19” (482.60 mm) or a 23” (584.20 mm) frame or cabinet. Utilizing the Clearview® Cassette, FieldSmart FxDS Panels are intelligently designed to provide the user with superior fiber access and craft-friendly, radius protected, fiber management for routing and deploying fiber jumpers.

Stand Alone Bulkhead in a 19” or 23” (482.60 mm or 584.20 mm) Frame

When you already have the frame and want to add just a panel or two of incremental fiber
management, the FxDS can be configured with front protection.

Stand Alone Panel in an OSP Active Cabinet

Make the crossover into the OSP with the identical product. Patch only environments are supported without additional components.
The common architecture saves you time and money in reducing inventory costs and shorter training period.

Stand Alone Panel in a Data Cabinet

When you already have a data cabinet and simply need to add fiber management, the FxDS is configured without the front protection block,
providing all the fiber protection you need without the added cost.

Features & Benefits


  • RUS listed
  • Designed, tested and certifed to Telcordia GR-63 and GR-449
  • Fiber cable is certified to Telcordia GR-20 & GR-409
  • Optical component configurations use Telcordia GR-1221/1209 compliant devices
  • Terminations designed, tested and certified to Telcordia GR-326
  • Supports all industry standard singlemode and multimode connectors


  • Front protection cover is easily removable with no tools needed
  • Individual radius fingers provide organized and intuitively managed fiber jumpers and minimize pile-up
  • The Clearview Cassette houses critical circuits by 12-fiber sub-units or buffertubes


  • Front access to pre-terminated assemblies with removable adapter plates for testing, cleaning and maintenance
  • The entire 12-fiber Clearview Cassette is removable for hot-swap changes


  • Using the Clearview Cassette, all fibers are deployed in increments of 12, allowing users to scale from 12 ports to full configuration without additional equipment

Technical Specifications

Specification Description
Port Density 24 72 96 144 288
Dimensions 1.75” H
(44.45 mm)
3.5” H
(88.90 mm)
4” H
(101.60 mm)
6” H
(152.40 mm)
11” H
(279.40 mm)
Ratings Compliant to Telcordia GR-63, GR-449, GR-20 and GR-409
Cassette Types Supported Clearview® Blue, Clearview Black
Connector Types SC/UPC, SC/APC, LC/UPC, LC/APC, MPO
Cable Types Tight Buffer, Ribbon
Splice Capacity 12 splices in each Clearview Cassette
Front Protection 3.25” (82.6 mm) radius rods
Material Steel and aluminum with powder paint coating
