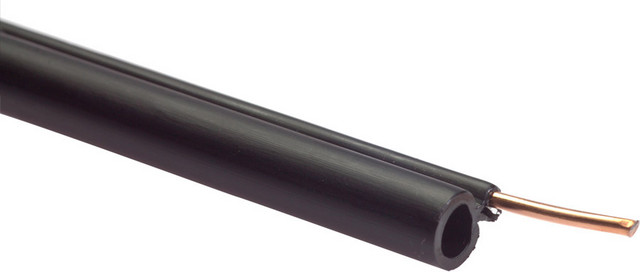

FieldShield Aerial Microduct is an 8 mm diameter, self supporting (figure-8 style) microduct intended to deploy fiber the same way an aerial drop is installed with the use of either a PLP (DE 2525) or other suitable hardware. Designed to comply with North American storm and ice loading standards, the 1.5 mm copper clad steel metallic strength member makes FieldShield Aerial Microduct the perfect solution for spanning lengths up to 200 feet or lashing to an existing support strand. The FieldShield 8 mm diameter Aerial Microduct supports FieldShield Pushable Optical Fiber that is 3 mm in diameter.

Technical Specifications

Length 2,000 feet per spool (-0 / +5%)
Outside Diameter 0.315" (8 mm)
Inside Diameter 0.223" (5.5 mm)
Wall Thickness 0.051" (1.295 mm)
Slip Layer Minimum 0.004" (0.102 mm)
Span 200 feet maximum
Ovality ≤ 5%
Crush Resistance 900 psi
Installation Tension 340 lbf
Minimum Bend-Radius 6" radius
Material HDPE
Operating Temperature -40°F to 176°F (-40°C to 80°C)
Installation Temperature -14°F to 158°F (-26°C to 70°C)
Color Black
Figure 8 Strength Wire Material Copper Clad Steel
Strength Wire Diameter 0.059” (1.5 mm)
Markings Part number, lot number, footage markers every two feet
Spool Size 12”ID x 23 ½”OD x 14 ½”IW
Weight (2,000 feet on spool) 61 lbs

Features & Benefits

Integrity

  • Compliant to Telcordia GR-3155

Protection

  • High crush and tension resistance protects duct from harshest environmental conditions
  • Made with HDPE to prevent degradation from sun and elements

Access

  • Industry standard black for high visibility in aerial applications
  • External aerial strength support easily attaches to existing support strands
  • Quick and easy to install in self supporting aerial applications
  • Smooth core with additional slip lining enables fiber to be pushed or pulled with minimal resistance
  • Standard nylon pull string simplifies deployment of fiber when pulling or using a push/pull combo

Investment

  • Tech-friendly deployment methods reduce installation expenses
